shot blasting machine

Shot blasting machines are core surface treatment equipment in modern industry. Utilizing the principle of centrifugal force,

a motor drives an impeller to rotate at high speed, accelerating steel shot, steel grit, glass beads, and other projectiles to a speed

of 60-100 meters per second. This concentrated impact strikes the workpiece surface, achieving multiple processing effects such as

surface cleaning, strengthening, rust removal, shaping, and roughness adjustment. It has completely replaced traditional manual

grinding and pickling processes, becoming an indispensable production equipment in manufacturing, construction, aerospace,

 transportation, and other fields.

Core Equipment Types:

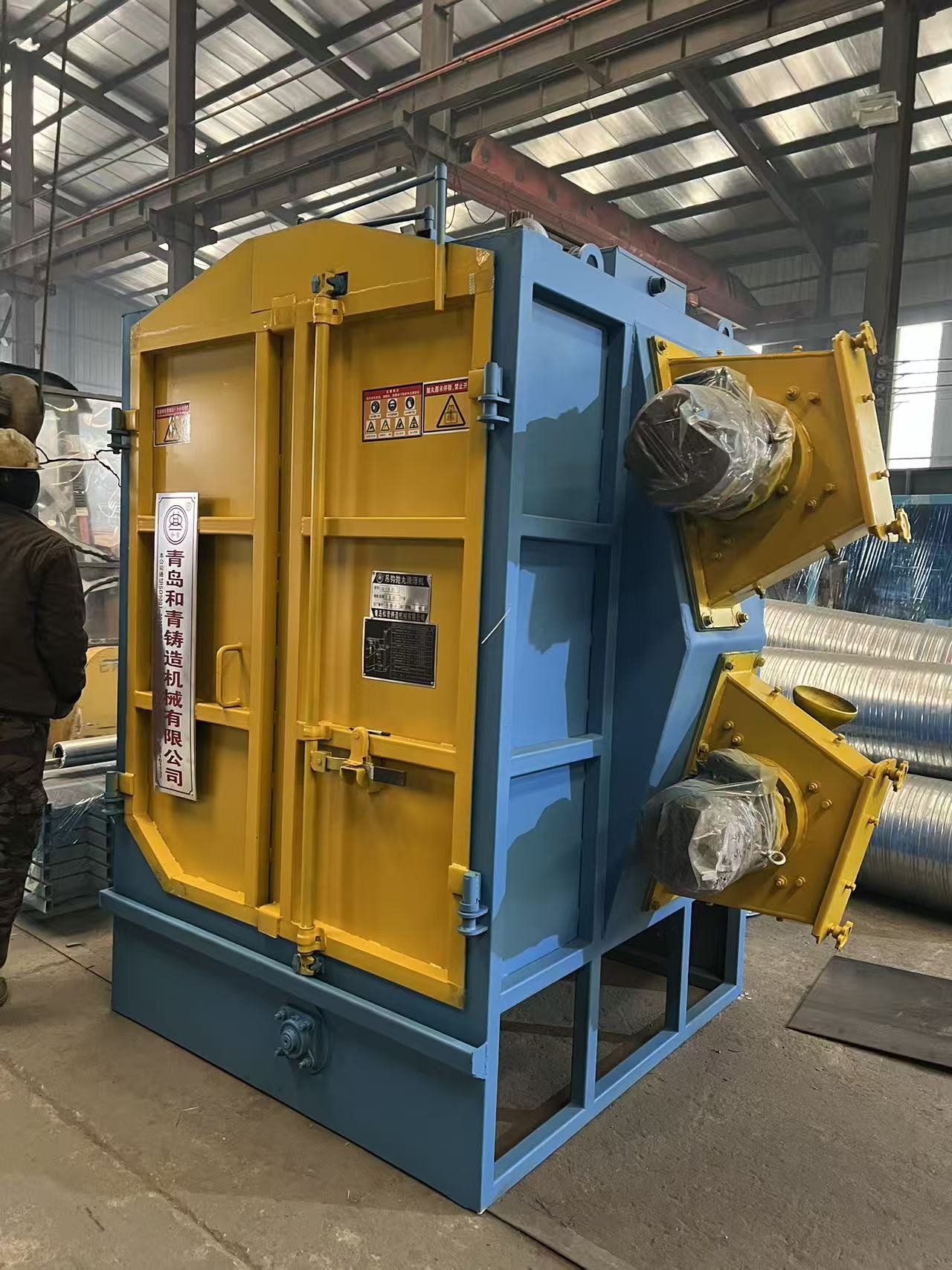

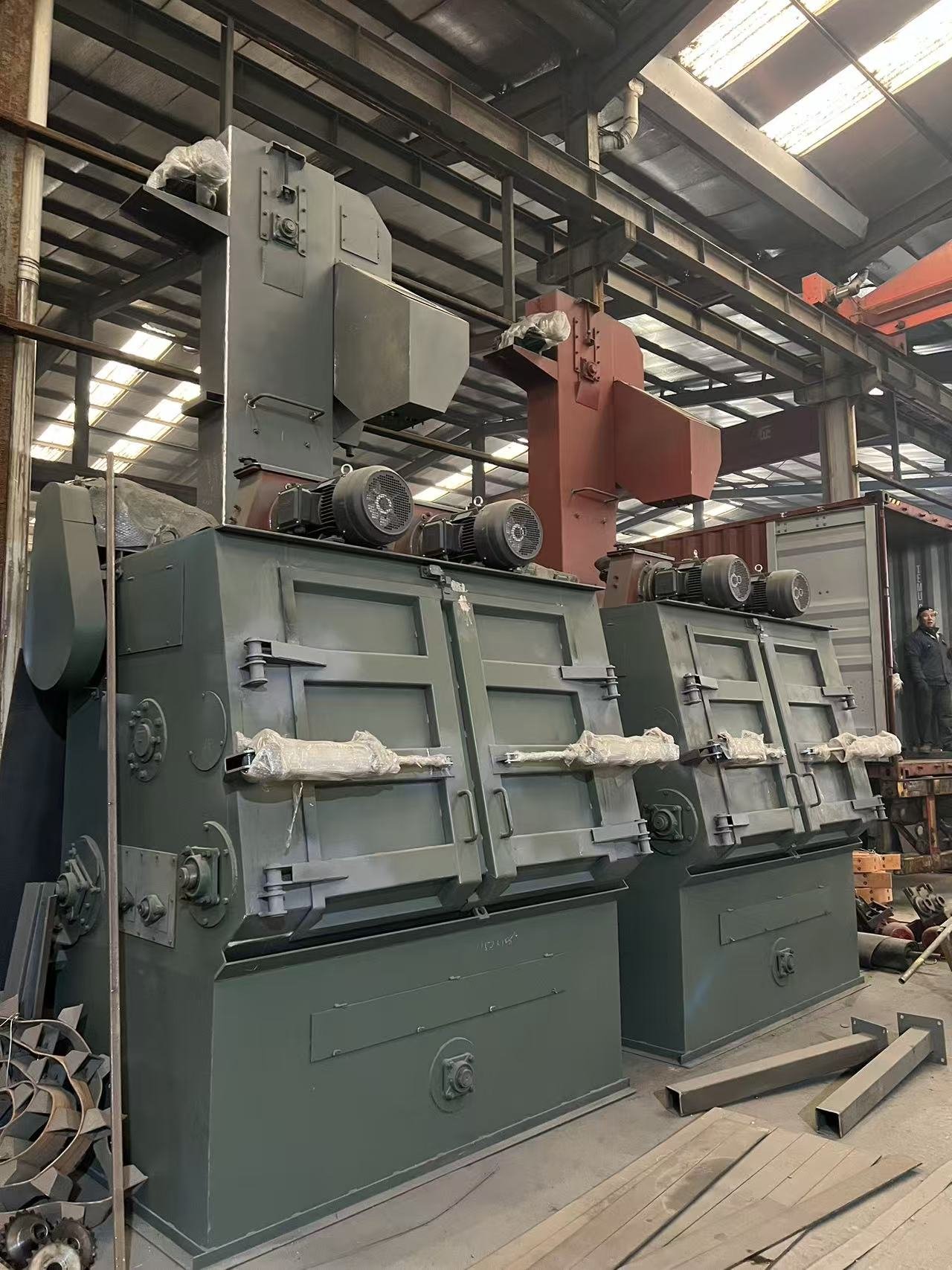

Tracked shot blasting machine, hook-type shot blasting machine, through-type shot blasting machine, shot peening strengthening

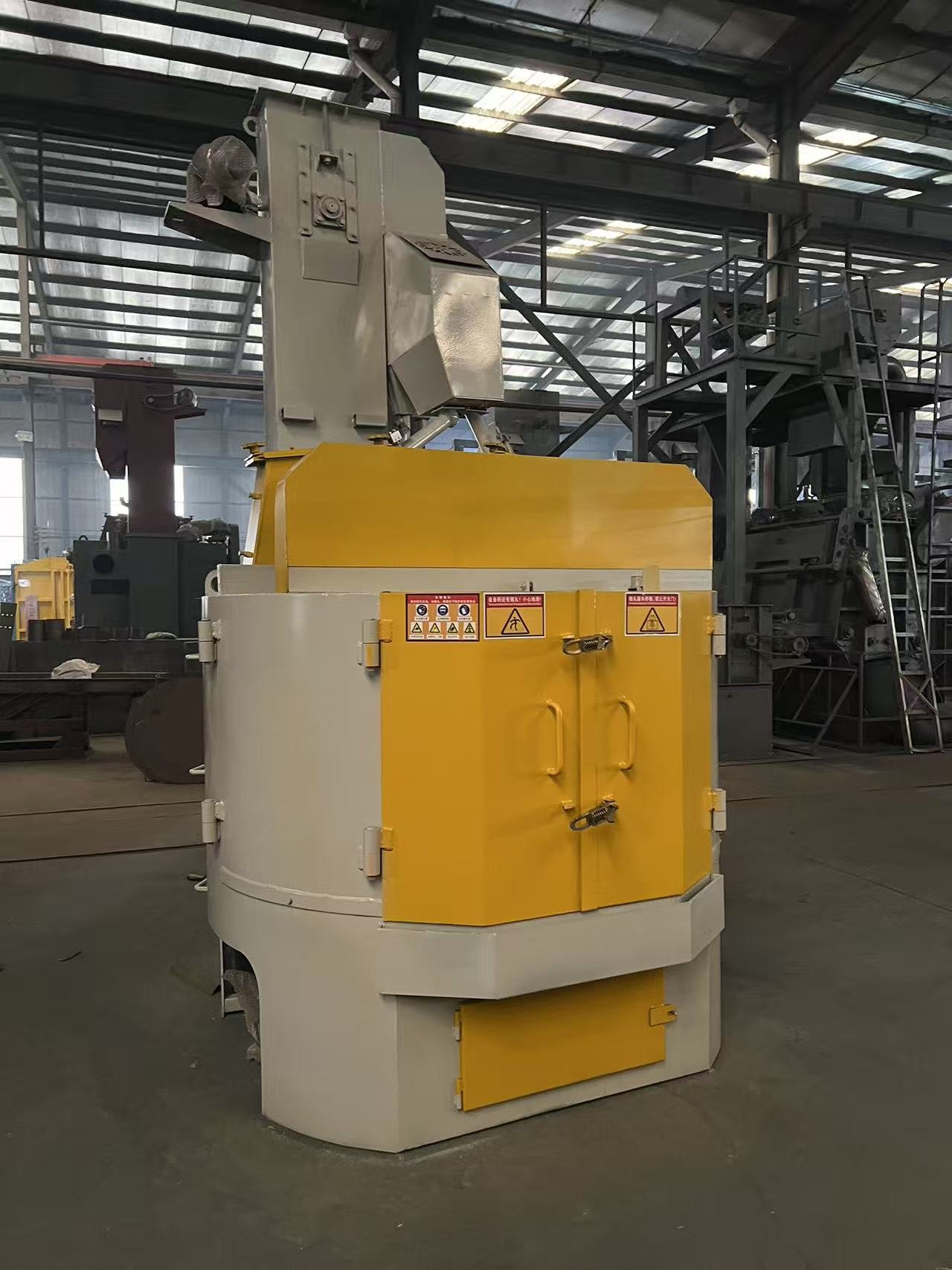

 machine, drum/rotary table shot blasting machine

Core Application Areas:

Metal surface cleaning and rust removal, Metal surface strengthening, Surface treatment of castings and forgings, Stress relief

Core Technological Advantages:

Compared to traditional surface treatment processes, shot blasting machines offer comprehensive advantages in efficiency,

quality, environmental protection, and cost, perfectly meeting the core needs of modern industry for cost reduction, efficiency

improvement, and green production:

Highly Efficient Operation, Significant Cost Reduction: Mechanized continuous operation mode, the processing efficiency of a

single machine is equivalent to the manual grinding of 10-20 workers. It can operate 24 hours a day without interruption,

significantly shortening the production cycle and reducing reliance on manual labor. A single steel structure processing line

can save hundreds of thousands of yuan in labor costs annually;

Stable Quality, Precise and Controllable:

By setting uniform parameters such as shot specifications, impeller speed, and processing time, it ensures uniform and consistent

surface treatment effects on workpieces, avoiding problems such as missed cleaning and over-grinding. It can accurately achieve

 Sa2.5-Sa3 level rust removal standards, and improve coating adhesion by 30%. The above is a summary of the key features of the

 machine. **Green and Environmentally Friendly, Compliant and Worry-Free:** Utilizing a closed-loop system of shot recycling and

dust collection, the shot utilization rate exceeds 95%, and the dust collection rate surpasses 99%. No acidic wastewater is generated,

and dust emission concentration can be as low as 5mg/m³, fully complying with national industrial waste gas emission standards and

reducing environmental compliance pressure on enterprises.

**Widely Applicable, Multi-Functional:

** It can process metal materials such as steel, iron, aluminum, and copper, as well as non-metallic materials such as stone, glass, and

concrete. By adjusting the shot type and process parameters, different process objectives such as cleaning, strengthening, finishing, and

 shaping can be achieved.

**Long-Lasting and Durable, Reducing Subsequent Costs:

** Thoroughly removing corrosion sources extends the service life of workpieces. Surface strengthening reduces the frequency of subsequent

 maintenance and replacement. Uniform surface treatment can reduce paint usage by 15%-20%, significantly reducing rework costs.
